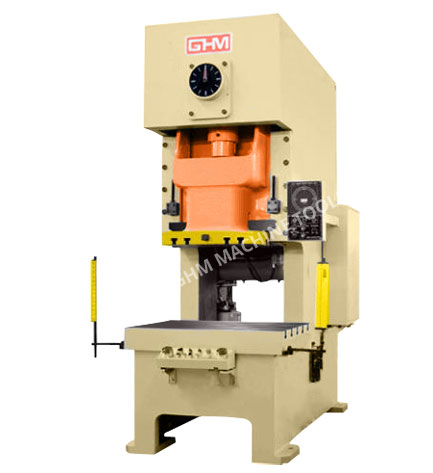

Model		GCSP	GCSP	GCSP	GCSP	GCSP	GCSP	GCSP	GCSP
Capacity	Tons	32	40	63	80	100	160	200	250
Strokes	SPM	50	50	50	45	45	40	40	35
Stroke Length	mm	70	80	100	100	125	160	200	200
Shut height	mm	250	275	300	310	325	400	450	475
Slide adjustment	mm	50	55	60	70	80	100	110	125
Slide area (L-R x F-B)	mm	350x250	400x350	500x400	550x415	625x450	700x600	900x800	915x815
Bed area (L-R x F-B)	mm	640x400	800x450	850x500	950x575	1000x625	1125x750	1250x800	1300x815
Bed thickness	mm	63	70	80	90	100	125	140	150
Power Required	Hp/Rpm	3/1440	5/1440	7.5/1440	7.5/1440	10 /1440	15/1440	20/1440	25/1440
Required air pressure	Kg/cm2	5.5	5.5	5.5	5.5	5.5	5.5	5.5	5.5
Die cushion cap.	Tons	2.5	4.5	4.5	6.3	8	10	14	14
Stroke	mm	50	50	50	50	75	100	100	125
Pad area	mm	290x200	335x230	380x260	425x300	475x325	535x425	600x425	600x475
Air pressure	Kg/cm2	7	7	7	7	7	7	7	7

In view of continuously development, we reserve the right to modify the design and or dimensions without notice.
